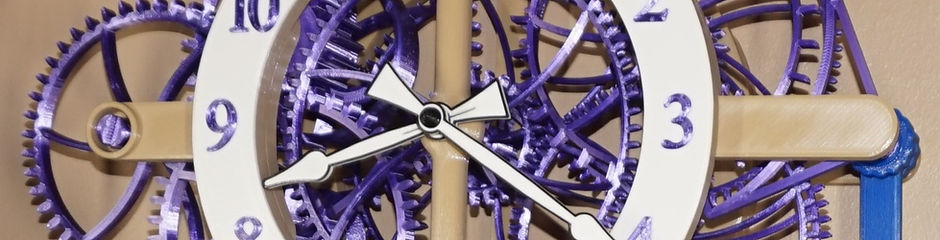

University of Illinois Clock (SP3B)

Just finished this one. It's running robustly on 6 pounds.


9 Views

The Evolving Art Deco SP7

As some of you have seen the modifications I did to the SP7 Pendulum Clock. I have morphed it even more lol... Which one do you like ? The last 2 I have hired freelance CAD designers to create the clocks for me.



99 Views
Steve
Steve
Oct 15

They look amazing. They also look like non-functional AI images, especially the last ones. Where is the bottom half of the sun/moon dial? Why are there so many floating or partial gears? The AI engine adds so many non-functional gears for symmetry, yet the bottom right gear in the last image has non-symmetrical spokes.

SP14 Large Moon Phase Clock

This is my version of the SP14 Large Moon Phase Clock. It's my 2nd Steve's Clock, the first being a SP8 Coup Perdu. So far it's run through an entire moon phase extremely well and is within my accuracy target of a minute per week.


I printed the clock last winter but didn't assembly it until recently. I noticed that all the thin wheels had warped to varying degrees.



I recovered the wheels using the procedure above with weights, heating the printer bed to 75C and letting them soak at that temperature for 15 mins and then cool. So far they seem to be holding their shape and I think the old PLA filament that was used was probably the problem.


The clock is running very robustly at the pulley weight shown. The wheel arbors are polished SS rods which I think provide a better bearing surface than piano wireโ€ฆ


80 Views
Steve
Steve
Sep 29

Looks good. 4lb 10.4oz is a bit on the low side. The clock runs, as you say, but the pendulum amplitude is probably a bit shallow. This makes it sensitive to stopping from drafts or if it goes out of beat when winding. The amplitude should increase if you add another pound or two of drive weight.


Interesting about the warped gears. And I great solution. PLA can start getting soft around 60-70C. And supposedly it creeps over time, but I have not noticed the frames warping on any of my clocks mounted on the wall. One warped when I was travelling with it and placed it on the passengers side floor area of a car with the heater running.

Printed Clocks

I wanted to show off the 4 clocks I have printed. My favorite is the Coup Perdu desk clock (with Coup Perdu escapement). All run very well and keep good time. I am new to 3d printing and the more I learn the more I am impressed with Steve's designs and instructions because I can't imagine the amount of time it took to engineer and perfect these designs. I will eventually pick out another clock to print but have not decided which one yet. I am leaning toward one of the desk clocks that use a stepper motor because that will give me an excuse to learn a bit about arduino.


81 Views
Steve
Steve
Sep 10

There are four stepper motor driven clocks to select from. All use the same algorithm with jumpers to select motor speeds since each clock has slightly different gear ratios between the motor and the second hand. They will all be accurate to about a minute per year. If you build your own controller, the assembly guide shows how to set up the Arduino IDE. There are also plenty of YouTube tutorials to help with the environment.
